Available Models:

Truck Icon
Truck
Trailer Icon
Trailer
Stationary Icon
Stationary

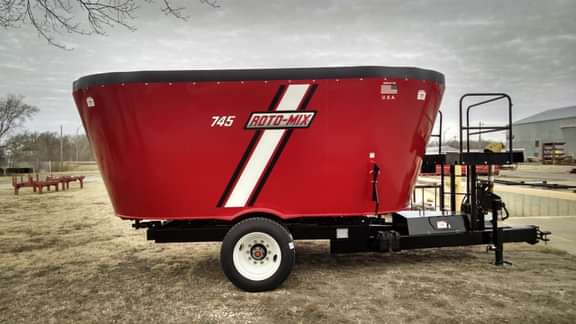

745 Vertical Feed Mixer Description

The 745 is a twin auger vertical feed mixer with a mixing capacity of 740 cu. ft and it can hold a maximum load with a heavy ration up to 18,500 lbs. The side discharge or front center flat sliding conveyor feed out of either side. Fixed or adjustable incline conveyors are optional. Twin matching single flighted augers with several knife options are available for faster mixing and processing of long fiber material. This unit is available in either truck, trailer or stationary. Its low profile allows several types of loaders to input feed without clearance concerns. The trailer model can be operated with a 110 hp or larger tractor. Twin screws are powered by a reliable, low maintenance PTO-driven, planetary gearbox. This feed mixer is for medium-sized dairy, cow/calf, stocker and heifer operations.
- Specifications Table - Truck Trailer Stationary All Types
Length (cm) 220-559 280-711 278-706
Width (cm) 108-274 110-279 108-274
Height (cm) 121-305 105-265 105-265
Weight (kg) 13598 to14000-6169 to 6350 15200-6893 15200-6893
Capacity-Mixing (m³) 740-20.95
Maximum Heavy Ration (kg) 18500-8392
