620-16XD Commercial Feed Mixer

Find Your Dealer

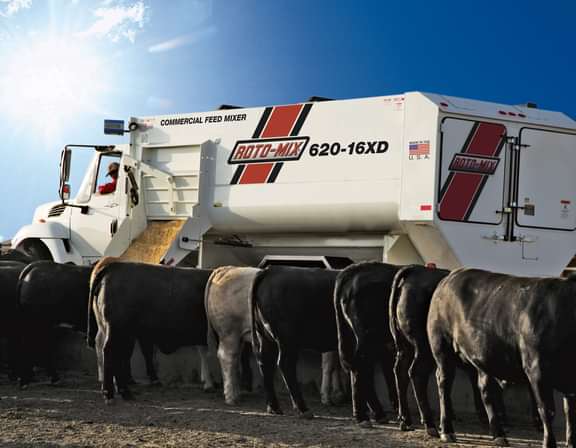

TRK 620 1 low res hero
Overlay Image

Available Models:

Truck Icon
Truck
Trailer Icon
Trailer
Stationary Icon
Stationary

620-16XD Feed Mixer Description

The 620-16 Horizontal Rotary Feed Mixer has a mixing capacity of 620 cu. ft. and can hold a maximum load with a heavy ration up to 17,500 lbs. It is available with a choice of several rotor styles to better mix your specific kind of rations. The patented Staggered Rotor GeneRation II option is ideal for feeding rations that require wet distillers grains. Three, Five and Six-Bar option rotary mixers allow more leaves and particle length during mixing with hay. This model is also available in Xtra Duty with new design features that add strength, are longer lasting and are even more maintenance free. These Roto-Mix Commercial Series Feed Mixers are ideal for medium to large sized feeder or dairy operations.
620-16 stationary getting dumped into.
620-16 truck with the mixer feeding cattle.
620-16 trailer displayed in a building.
620-16 stationary from the side view.
620-16 truck with the mixer from the side view.
620-16 trailer set up on the lot.
620-16 stationary set up to work.
620-16 truck with the mixer in the workplace.

Which Style of Rotor Should I Choose?

GeneRation II Staggered

GeneRation II Staggered option is ideal for feeding rations that require wet distillers grains. Improved lifting and tumbling action, less revolutions, faster mix saves time and lowers maintenance costs.

5 or 6 Bar

5 or 6 Bar option allows for more leaves and more flakes. The patented rotor lifts feed up to the side augers that move feed from end to end for thorough mixing. This option is preferred in beef operations not using wet distillers grains.

3-Bar

3-Bar option allows more leaves and particle length during mixing with hay - a preference when feeding in dairy options.

- Specifications Table - Truck Trailer Stationary All Types
Length (cm) 218-554 278-706 231-587
Width (cm) 113-287 113-287 113-287
Height (cm) 116-295 36-91.3 111-280 86-217
Weight (kg) 16380-7428 18130-8222 16090-7296
Capacity-Mixing (m³) 620-17.56
Maximum Heavy Ration (kg) 17500-7938
