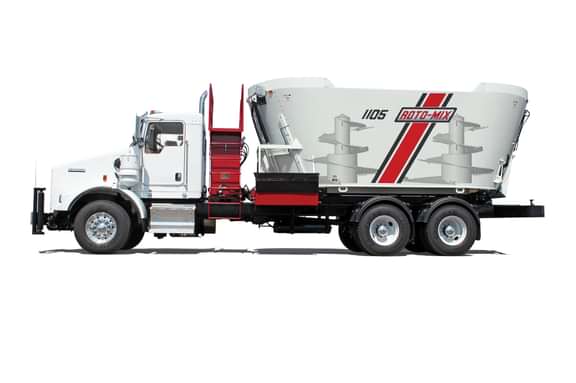

1105 Vertical Feed Mixer Description

The 1105 is a twin auger vertical mixer with a mixing capacity of 900 cu. ft. and it can hold a maximum load with a heavy ration up to 22,500 lbs.  The 1105 is available in either the A-Series that includes variable speed auto-mix drives with proven Allison transmission performance or the H-Series that is equipped with variable speed hydrostatic drives and load-controlled auger speeds. This vertical mixer provides a premium mix quality in efficient mix time and offers a superior hay length control. There are multiple unloading door options from side to rear. Available in truck, trailer or stationary, this unit is built for commercial use in larger dairy and feedlot operations.
- Specifications Table - Truck Trailer Stationary All Types
Length (cm) 245-622 334-848 245-622
Width (cm) 116-295 120-305 116-295
Height (cm) 126-318 116-293 111-280
Weight (kg) 21648 to 22000-9820 to 9979 17100-7754 22000-9977
Capacity-Mixing (m³) 900-25.49
Maximum Heavy Ration (kg) 22500-10205
